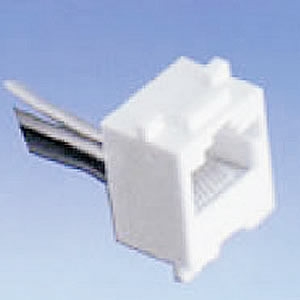

• 641 Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

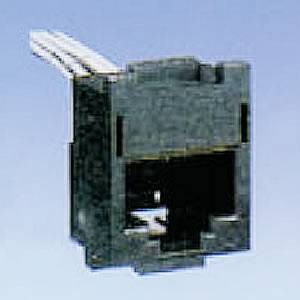

  • 647 Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • 648K Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

Total of 3 results
