• 616 Series

  • Phone Jack

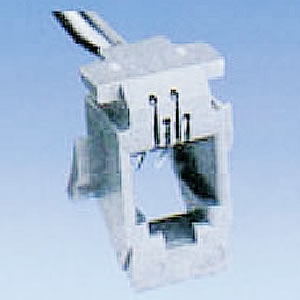

    AJ-616W Series Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • Phone Jack

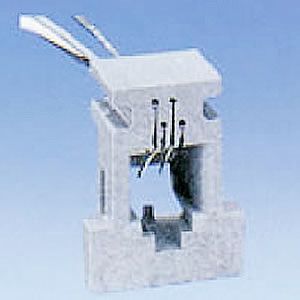

    616B Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • Phone Jack

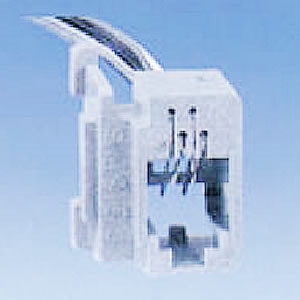

    616T Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • Phone Jack

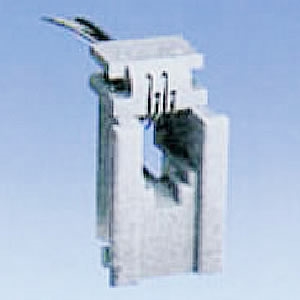

    616D Phone Jack

    Inquiry Info.

  • Phone Jack

    616D Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • Phone Jack

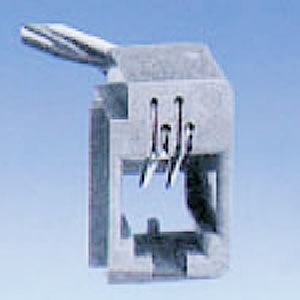

    616E Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • Phone Jack

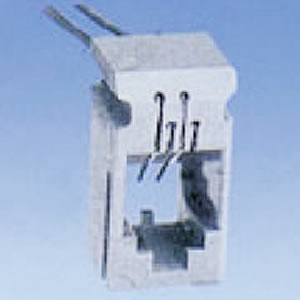

    616L Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • Phone Jack

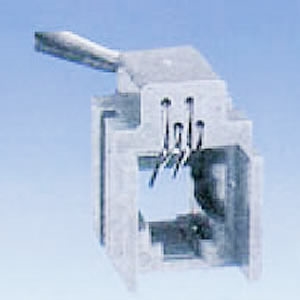

    616M Phone Jack

    SPECIFICATION:

    Electrical Char.

    • Insulation Resistance: 500M-Ohm Min.
    • Contact Resistance: 20mill-Ohm Max.
    • Rating Current: 1.5A Max.
    • Rating Voltage: 120V AC
    • Dielectric Voltage: 1,000 Vrms 60 Sec. Min.


    Physical Char.

    • Housing: ABS Resin (UL 94V-0)
    • Color : Black / Gray Color
    • Contact Wires: Spring Wire : 0.45mm Dia. Phosphor bronze. Gold Plating Over Nickel
    • Temperature Range: -25 / +90 Deg C
    • Durability : 500 Mating cycles Min.
    • Wires : UL-1061.

    Inquiry Info.

  • 616P Phone Jack

    Inquiry Info.

  • 616J Phone Jack

    SPECIFICATION:
     1. Electrical Char.
     Insulation Resistance: 500M-Ohm Min.
     Contact Resistance: 20milli-Ohm Max.
     Rating Current: 1.5A Max.
     Delectric Voltage: 1,000 RMS 60 Sec. Min.

         2.Physical Char.
     Housing:     ABS Resin (UL 94V-0)
     Contact Wires: 0.45mm Dia. phosphor bronze
                             gold plating over nickel
     Temperature Range: -25 + 85℃
     Durability: 500 Mating cycles Min.
     Wires: UL-1061 26AWG.

    Inquiry Info.

Total of 14 results
